import java.util.Set;
/**

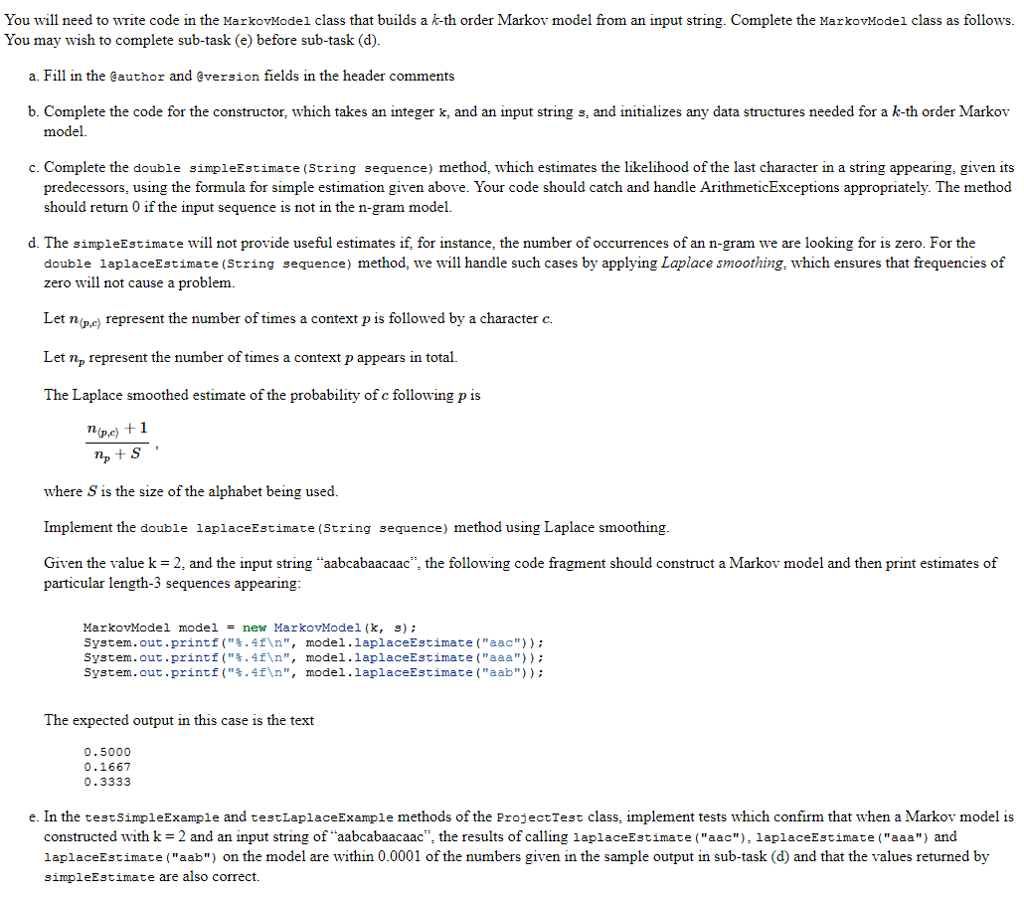

* Construct a Markov model of order /k/ based on an input string.
*
*/
public class MarkovModel
{
/** Markov model order parameter */
int k;
/** ngram model of order k */
NgramAnalyser ngram;
/** ngram model of order k+1 */
NgramAnalyser n1gram;
// probability of the next ngram occuring
double probability;
//the size of the alphabet
int alphSize;
/**
* Construct an order-k Markov model from string s
* @param k int order of the Markov model
* @param s String input to be modelled
*/
public MarkovModel(int k, String s)
{
this.k = k;
ngram = new NgramAnalyser (k, s);
n1gram = new NgramAnalyser (k+1, s);
}
/**
* @return order of this Markov model
*/
public int getK()
{
return this.k;
}
/**
* Estimate the probability of a sequence appearing in the text
* using simple estimate of freq seq / frequency front(seq).
* @param sequence String of length k+1
* @return double probability of the last letter occuring in the
* context of the first ones or 0 if front(seq) does not occur.
*/
public double simpleEstimate(String sequence) {
int sequenceFreq = n1gram.getNgramFrequency(sequence);
int preFreq = ngram.getNgramFrequency(sequence.substring(0,sequence.length()-1));
if (sequenceFreq == 0){
probability = 0;
} else{
probability = (double) sequenceFreq / (double) preFreq;
}
return probability;
}
/**
* Calculate the Laplacian probability of string obs given this Markov model
* @input sequence String of length k+1
*/
public double laplaceEstimate(String sequence)
{
int sequenceFreq = n1gram.getNgramFrequency(sequence);
int preFreq = ngram.getNgramFrequency(sequence.substring(0,sequence.length()-1));
alphSize = ngram.getAlphabetSize();
probability = ((double) (sequenceFreq + 1)) / ((double) (preFreq + alphSize));
return probability;
}
/**

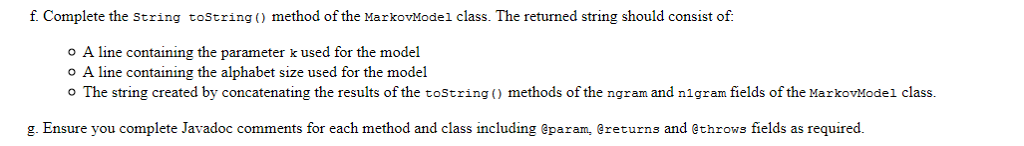

* @return String representing this Markov model
*/
public String toString()
{
String result = “The ” + k + ” order of the Markov Modeln” + “alphabet size of ” + alphSize + “n”;
result += ngram.toString() + n1gram.toString();
System.out.println(result);
return result;
}
}
============================================================================================================
//MatcherController.java
import java.io.File;
import java.util.ArrayList;
import java.util.HashMap;
import java.util.Set;
import java.io.*;
/**
* Create and manipulate Markov models and model matchers for lists of training data
* a test data String and generate output from it for convenient display.
*
*
*/

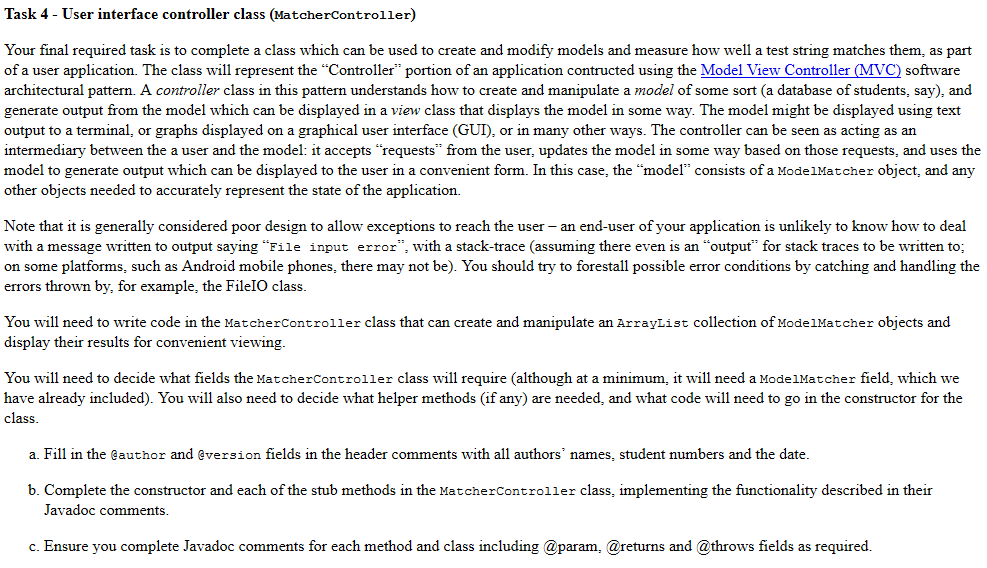

public class MatcherController {
/** list of training data string used to generate markov models */
ArrayList<String> trainingDataList;
/** test data to be matched with the models */
String testData;
/** order of the markov models */
int k;
/** generated list of markov models for the given training data */
ArrayList<MarkovModel> modelList;
/** generated list of matchers for the given markov models and test data */
ArrayList<ModelMatcher> matcherList;
/** best ModelMatcher for the given testData string */
ModelMatcher bestModelMatcher;
/**
* Generate models for analysis
* Initialize class fields
* @param k order of the markov models to be used
* @param testData String to check against different models
* @throw unchecked exceptions if the input order or data inputs are invalid
*/
public MatcherController(int k, ArrayList<String> trainingDataList, String testData) {
this.checkInputs(k, trainingDataList, testData);
this.k = k;
this.testData = testData;
this.trainingDataList = trainingDataList;
this.modelList = new ArrayList<MarkovModel>();
this.matcherList = new ArrayList<ModelMatcher>();
ModelMatcher tempMatcher;
MarkovModel tempModel;
for (String trainingString : this.trainingDataList) {
tempModel = new MarkovModel(k, trainingString);
tempMatcher = new ModelMatcher(tempModel, testData);
this.modelList.add(tempModel);
this.matcherList.add(tempMatcher);
}
this.bestModelMatcher = this.getBestMatch(this.matcherList);
}
/**
* @return a string containing all lines from a file
* if file contents can be got, otherwise null
* This method should process any exceptions that arise.
*/
private static String getFileContents(String filename) {
try {
String outputString = “”;
ArrayList<String> fileLines = FileIO.readFile(filename);
for (String fileLine : fileLines) {
outputString = outputString + fileLine;
}
return outputString;
} catch(FileNotFoundException e) {
//TODO
} catch(IOException e) {
//TODO
}
return null;
}
/**
* @return the ModelMatcher object that has the highest average loglikelihood
* (where all candidates are trained for the same test string)
*/
public ModelMatcher getBestMatch(ArrayList<ModelMatcher> candidates) {
double bestLikelihood = 0;
ModelMatcher bestMatcher = candidates.get(0);
double tempLikelihood;
for (ModelMatcher matcher : candidates) {
tempLikelihood = matcher.getAverageLogLikelihood();
if (bestLikelihood == 0 || tempLikelihood > bestLikelihood) {
bestLikelihood = tempLikelihood;
bestMatcher = matcher;
}
}
return bestMatcher;
}
/**
* @return String an *explanation* of
* why the test string is the match from the candidate models
* Prints a bar chart of each loglikelihood relative to the lowest loglikelihood
* Table rows are based on the negative inverse of each loglikelihood
* to produce a proportional and increasing group of values.
* Loglikelihoods are first modified as previously stated (inverse and sign changed)
* These modified bar likelihoods are then converted into rations (barNumbers)
* Also shows numerical values next to each table with best one labelled
*/
public String explainBestMatch(ModelMatcher best) {
ArrayList<Double> modifiedLoglikelihoods = new ArrayList<Double>();
ArrayList<Double> normalLoglikelihoods = new ArrayList<Double>();
ArrayList<Long> barNumbers = new ArrayList<Long>();
Double lowestLikelihood = 0.0;
Double loglikelihood = 0.0;
String outputString = “”;
//Retrieve loglikelihoods from matcher array
for (ModelMatcher matcher : this.matcherList) {
loglikelihood = matcher.getAverageLogLikelihood();
normalLoglikelihoods.add(loglikelihood);
//Modify likelihoods and add them to modified array
loglikelihood = -(1 / loglikelihood);
modifiedLoglikelihoods.add(loglikelihood);
}
//Find the lowest likelihood to scale bar numbers against
for (Double scaledLikelihood : modifiedLoglikelihoods) {
if (lowestLikelihood == 0.0 || scaledLikelihood < lowestLikelihood) {
lowestLikelihood = scaledLikelihood;
}
}
Double relativeLikelihood;
Long barNumber;
//Get ratio of modified likelihoods to lowest likelihood and add to barNumbers
for (int i = 0; i < modifiedLoglikelihoods.size(); i++) {
relativeLikelihood = modifiedLoglikelihoods.get(i);
barNumber = Math.round(relativeLikelihood / lowestLikelihood);
barNumbers.add(i, barNumber);
}
outputString += “Table of Average Likelihoods for each Text Souce:”;
Double actualLikelihood;
Long barScaleValue = 1l;
//Ensure the bar lengths aren’t too large
//barScaleValue scales back each barnumber by a whole factor
Long largestBarLength =
Math.round((-(1/best.getAverageLogLikelihood()))/lowestLikelihood);
while (largestBarLength > 25) {
barScaleValue += 1;
largestBarLength = (long)Math.round(largestBarLength / barScaleValue);
}
//Format and create chart
for (int i = 0; i < barNumbers.size(); i++) {
barNumber = barNumbers.get(i);
actualLikelihood = normalLoglikelihoods.get(i);
outputString += “n”;
outputString += String.format(“%.5g”, actualLikelihood);
if (this.matcherList.get(i) == best) {
outputString += “##|”;
} else {
outputString += ” |”;
}
//Prints out barNumber many ‘-‘ characters for rows of chart.
int numberOfDashes = ((int) (long) barNumber)/((int) (long)barScaleValue);
outputString += new String(new char[numberOfDashes]).replace(“ ”, “-“);
}
return outputString;
}
/**
* Display an error to the user in a manner appropriate
* for the interface being used.
*
* @param message
*/
public void displayError(String message) {
// LEAVE THIS METHOD EMPTY
}
/**
* Helper function to display the results of the analysis of the
* matchers. Does this textually in a simple, formatted manner
* Designed for use with terminal for experienced programmers
*/
public void displayResults() {
String outputString = “”;
outputString += “Displaying Results for Textual Analysis of String”;
outputString += ” ‘” + this.testData + “‘nn”;
outputString += “Comparing Test String Against”;
outputString += ” ” + this.matcherList.size() + ” “;
outputString += “text sourcesnn”;
outputString += “Analysis determines that the String “;
outputString += “was most likely from the following Text Source:nn”;
int bestIndex = this.matcherList.indexOf(this.bestModelMatcher);
String correctSource = this.trainingDataList.get(bestIndex);
String stylisedSource = “”;
//Stylise the source so it fits correctly for convenient viewing
for (int i = 0; i < correctSource.length(); i += 75) {
stylisedSource += NgramAnalyser.splice(correctSource, i, 75);
stylisedSource += “n”;
}
outputString += stylisedSource;
outputString += “nn — Analysis Details — nn”;
outputString += this.explainBestMatch(this.bestModelMatcher);
System.out.println(outputString);
}
/**
* Helper function to sanitize data inputs
* @throws unchecked exceptions:
* – if k is below or equal to zero
* – if k is higher than the testData string length
* – if the trainingData list is null or empty
* – if the testData string is null or empty
* – if any of the strings in the testData list are empty or null
*/
public void checkInputs(int k, ArrayList<String> trainingDataList, String testData) {
if (k <= 0) {
throw new IllegalArgumentException
(“MatcherController: ngram size cannot be below zero”);
} if (k > testData.length()) {
throw new IllegalArgumentException
(“MatcherController: ngram size cannot be larger than string length”);
} if (trainingDataList.size() == 0) {
throw new IllegalArgumentException
(“MatcherController: list of training strings cannot be empty”);
} if (trainingDataList == null) {
throw new IllegalArgumentException
(“MatcherController: list of training strings cannot be uninitialized”);
} if (testData.length() == 0) {
throw new IllegalArgumentException
(“MatcherController: string to test cannot be empty”);
} if (testData == null) {
throw new IllegalArgumentException
(“MatcherController: string cannot be null”);
}
for (String trainingString : trainingDataList) {
if (trainingString.length() == 0 || trainingString == null) {
throw new IllegalArgumentException
(“MatcherController: trainingDataList cannot have empty/null entries”);
}
}
}
}
====================================================================================================================
//ModelMatcher.java
import java.util.HashMap;
import java.util.Collections;
import java.util.ArrayList;
import java.util.Arrays;
import java.util.Map;
import java.util.Set;
import java.util.LinkedHashMap;
/**

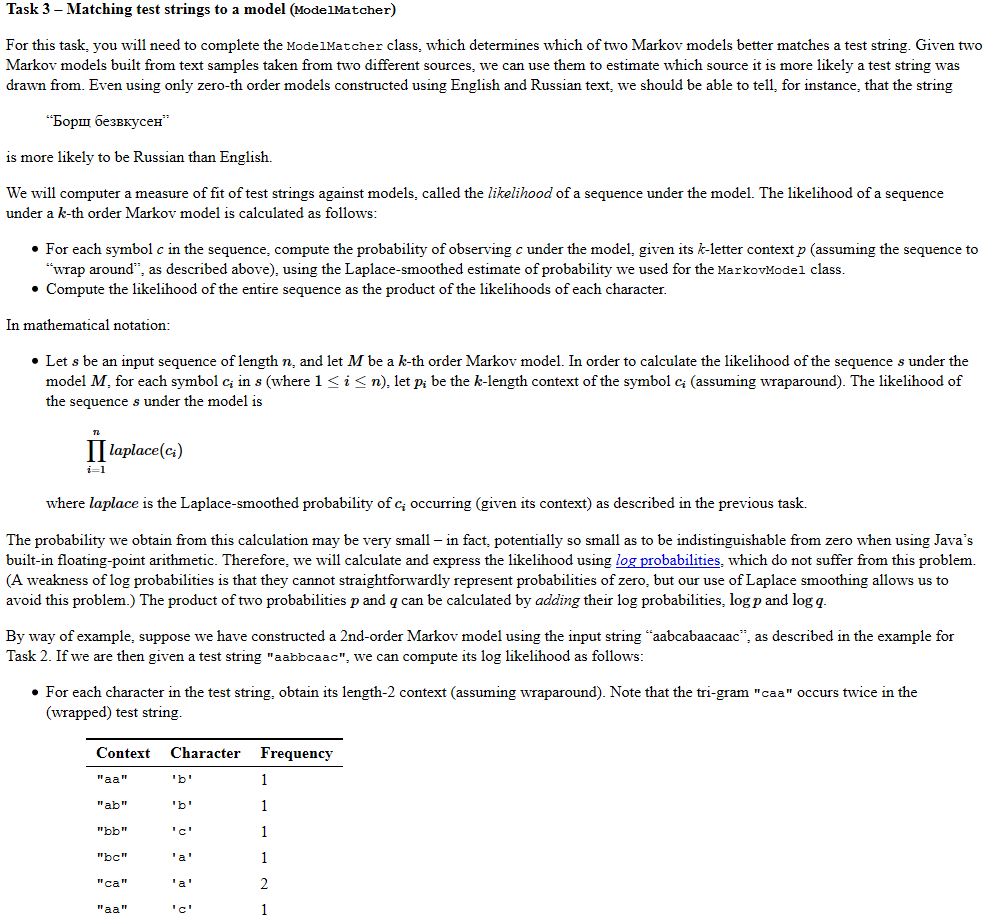

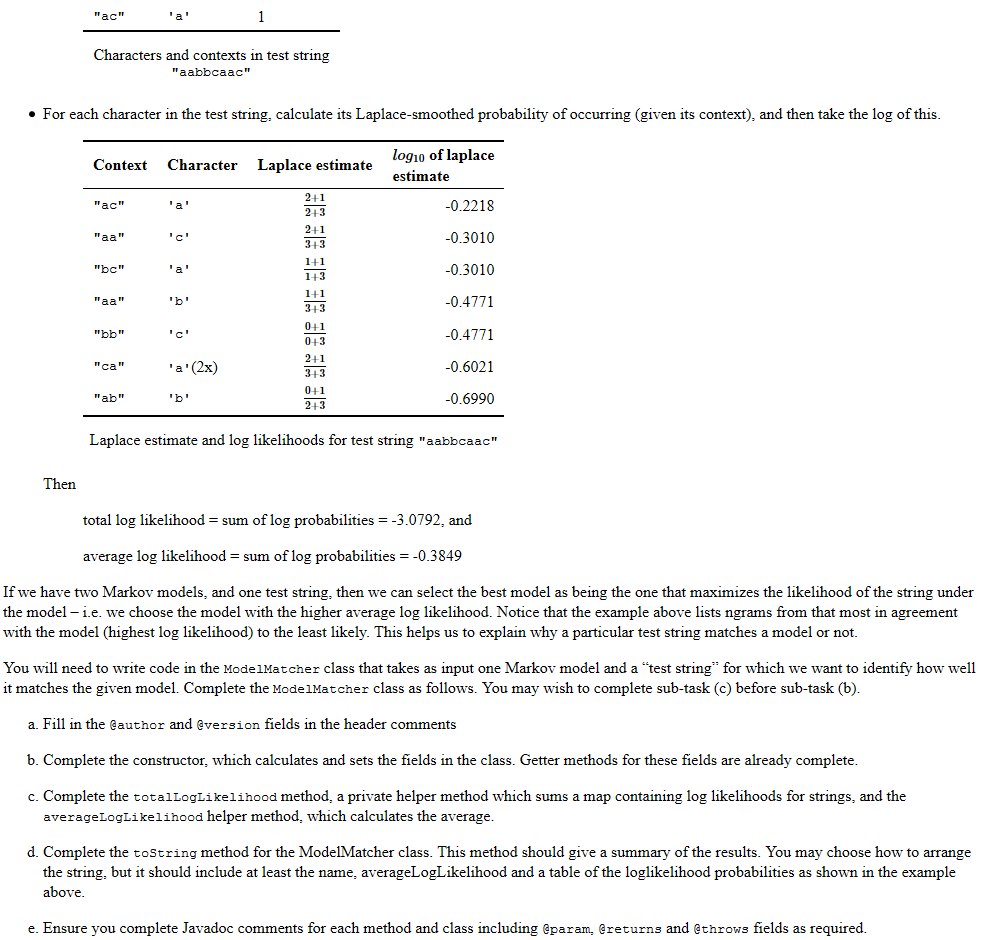

* Report the average log likelihood of a test String occuring in a
* given Markov model and detail the calculated values behind this statistic.
*
*/
public class ModelMatcher
{
/** log likelihoods for a teststring under a given model */
private HashMap<String,Double> logLikelihoodMap;
/** summary statistic for this setting */
private double averageLogLikelihood;
/**
* Constructor to initialise the fields for the log likelihood map for
* a test string and a given Markov model and
* the average log likelihood summary statistic
* @param MarkovModel model a given Markov model object
* @param String teststring
*/
public ModelMatcher(MarkovModel model, String testString) {
int modelOrder = model.getK();
this.logLikelihoodMap = new HashMap<String, Double>();
double laplaceEstimate;
double logLikelihood;
String sequence;
NgramAnalyser stringNgram = new NgramAnalyser(modelOrder + 1,testString);
Set<String> distinctNgrams = stringNgram.getDistinctNgrams();
for (String ngram : distinctNgrams) {
laplaceEstimate = model.laplaceEstimate(ngram);
//Use change of base formula to find log(10) likelihood
logLikelihood = Math.log10(laplaceEstimate);
this.logLikelihoodMap.put(ngram, logLikelihood);
}
this.averageLogLikelihood =
this.averageLogLikelihood(this.logLikelihoodMap, stringNgram.getNgramCount());
}
/** Helper method that calculates the average log likelihood statistic
* given a HashMap of strings and their Laplace probabilities
* and the total number of ngrams in the model.
*
* @param logs map of ngram strings and their log likelihood
* @param ngramCount int number of ngrams in the original test string
* @return average log likelihood: the total of loglikelihoods
* divided by the ngramCount
*/
private double averageLogLikelihood(HashMap<String,Double> logs, int ngramCount) {
double logSum = this.totalLogLikelihood(logs);
return (logSum /((double)ngramCount));
}
/**
* Helper method to calculate the total log likelihood statistic
* given a HashMap of strings and their Laplace probabilities
* and the total number of ngrams in the model.
*
* @param logs map of ngram strings and their log likelihood
* @return total log likelihood: the sum of loglikelihoods in logs
*/
private double totalLogLikelihood(HashMap<String,Double> logs) {
double logSum = 0;
for (Map.Entry<String, Double> entry : logs.entrySet()) {
logSum += entry.getValue();
}
return (logSum);
}
/**
* @return the average log likelihood statistic
*/
public double getAverageLogLikelihood() {
return averageLogLikelihood;
}
/**
* @return the log likelihood value for a given ngram from the input string
*/
public double getLogLikelihood(String ngram) {
return (logLikelihoodMap.get(ngram));
}
/**
* Make a String summarising the log likelihood map and its statistics
* @return Header lines containing the testString, the averageLogLikelihood
* and a sorted table of ngrams and their loglikelihoods
* The likelihood table should be ordered from highest to lowest likelihood
*/
public String toString() {
String returnString = “”;
returnString = returnString + Double.toString(this.averageLogLikelihood);
returnString = returnString + this.hashMapToString(this.logLikelihoodMap);
return returnString;
}
/**
* Helper function to return a sorted hashmap table string
* Sorted by loglikelihoods from highest to lowest
* @param the map to be sorted and printed
* @return the string of the hashmap table
*/
private String hashMapToString(HashMap<String, Double> map) {
HashMap<Double, String> reversedMap = new HashMap<Double, String>();
ArrayList<Double> likelihoods = new ArrayList<Double>();
for (Map.Entry<String, Double> entry : map.entrySet()) {
reversedMap.put(entry.getValue(), entry.getKey());
likelihoods.add(entry.getValue());
}
Collections.sort(likelihoods);
String outputString = “”;
for (Double likelihood : likelihoods) {
outputString += reversedMap.get(likelihood);
outputString += ” “;
outputString += Double.toString(likelihood);
outputString += “n”;
}
//Remove final n
outputString = NgramAnalyser.splice(outputString, 0, outputString.length() – 1);
return outputString;
}
}
=================================================================================================================
//ProjectTest.java
import static org.junit.Assert.*;
import org.junit.After;
import org.junit.Before;
import org.junit.Test;
import java.util.Set;
import java.util.ArrayList;
import java.util.Arrays;
/**
* The test class ProjectTest for student test cases.
* Add all new test cases to this task.
*/
public class ProjectTest
{
/**
* Default constructor for test class ProjectTest
*/
public ProjectTest() {
}
/**
* Sets up the test fixture.
*
* Called before every test case method.
*/
@Before
public void setUp() {
}
/**
* Tears down the test fixture.
*
* Called after every test case method.
*/
@After
public void tearDown() {
}
//TODO add new test cases from here include brief documentation
/**
* Test MarkovModel and all the contained functions
*/
@Test(timeout=1000)
public void testMarkovModel() {
String modelString = “12233321221123231”;
MarkovModel model = new MarkovModel(2, modelString);
//Testing for various sequences
String sequence = “123”;
assert(model.laplaceEstimate(sequence) == (double)(1.0/3.0));
assert(model.simpleEstimate(sequence) == (double)(1.0/3.0));
sequence = “111”;
assert(model.laplaceEstimate(sequence) == (double)(1.0/5.0));
assert(model.simpleEstimate(sequence) == (double)(0.0));
//Test if 0 is returned when given ngram that isnt in string
sequence = “abc”;
assert(model.simpleEstimate(sequence) == (double)(0.0));
}
@Test(timeout=1000)
public void testLaplaceExample() {
String modelString = “aabcabaacaac”;
MarkovModel model = new MarkovModel(2, modelString);
//Testing for various sequences
String[] stringsToTest = {“aac”, “aaa”, “aab”};
double[] correctLaplace = {(1.0/2.0), (1.0/6.0), (1.0/3.0)};
for (int i = 0; i < 3; i++) {
assert(model.laplaceEstimate(stringsToTest[i]) == correctLaplace[i]);
}
}
@Test(timeout=1000)
public void testSimpleExample() {
String modelString = “aabcabaacaac”;
MarkovModel model = new MarkovModel(2, modelString);
//Testing for various sequences
String[] stringsToTest = {“aac”, “aaa”, “aab”};
double[] correctSimple = {(2.0/3.0), (0.0), (1.0/3.0)};
for (int i = 0; i < 3; i++) {
assert(model.simpleEstimate(stringsToTest[i]) == correctSimple[i]);
}
}
@Test
public void testTask3example() {
/*
In this case the absolute value of the output had to be taken. This is acceptable because the output will never produce a positive number.
The boundary case would be an ngram which only contains a single character type, like “aaaaa”, then the alphabet size will be 1 and if
looking for “aaa”, the laplace estimation will be 1 and the log will be 0. Any other case will result in a laplace estimate being a
fraction < 1, resulting in a negative log value.
*/
MarkovModel model = new MarkovModel(2,”aabcabaacaac”);
ModelMatcher match = new ModelMatcher(model,”aabbcaac”);
assertEquals((int)Math.abs(Math.round(match.getAverageLogLikelihood()*10000)) ,3849);
}
}
